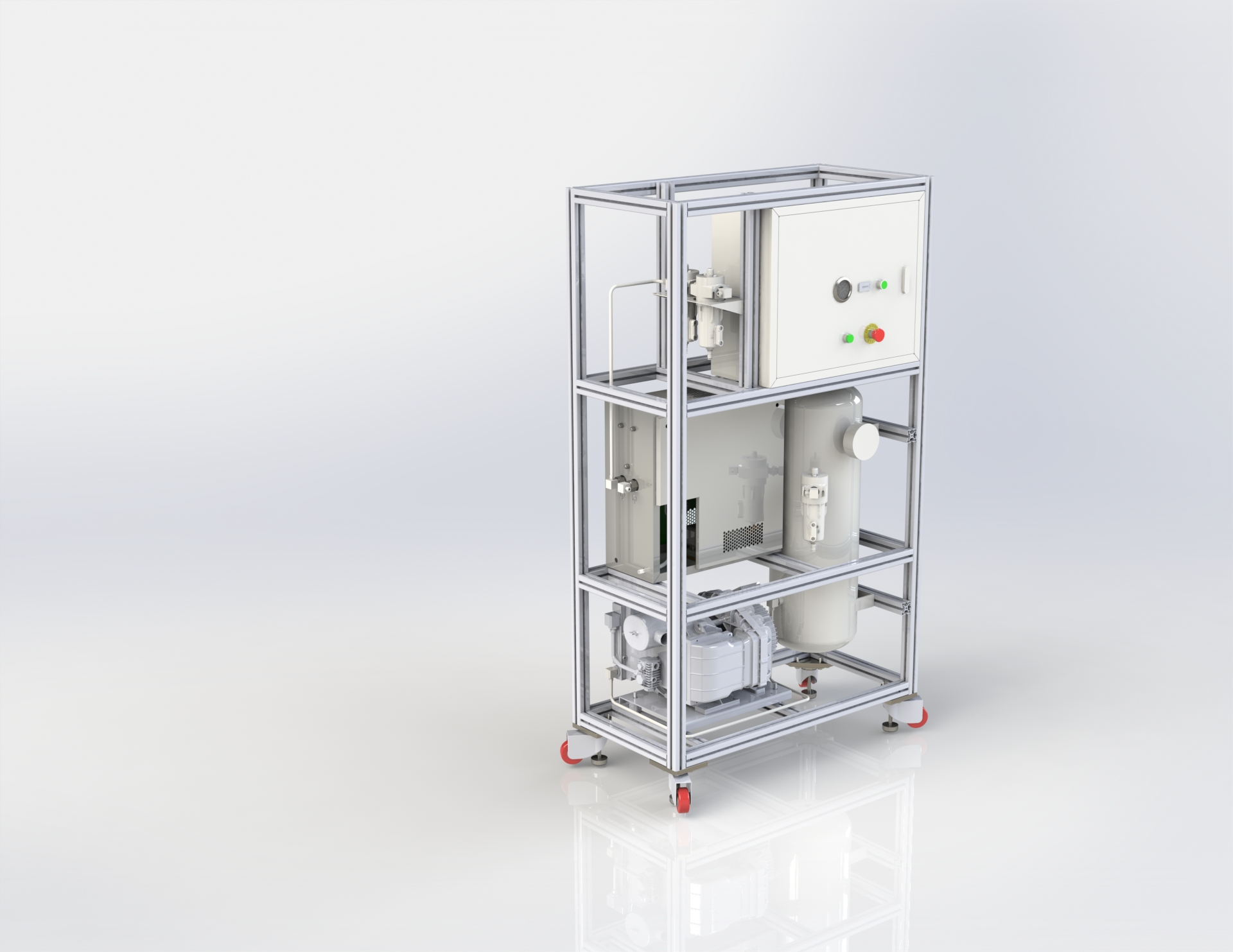

Ultra Series Compressed Air Cleaning System
Contact Now
Product Parameters
High Quality
Selecting high quality screw compressor, with PSI refrigeration air dryer and filters
Reliable Performance
Advanced quality components ensures reliable performance
Compact Design
Combing compressor,dryer,filter and tank all together, provides air no water,no oil, no dust, no odor
Easy Operate Easy Maintenance
Equipped with wheels, easily move and fix; One button for start and stop, easily operate
Space Saving
Taking up less floor space and making installation easily
Product selection
Model | Air Flow Rate m³/min | Air Tank Capacity -L | Power kW | Rated Outlet Pressure -bar | Dew Point ℃ | Filtration Grade -μm | Dimension mm |
PUC-24-YCA | 0.24 | 45 | 2.5 | 8 | 2-10 | 0.01 | 1080x530x1780 |
PUC-40-YCA | 0.40 | 45 | 4.0 | 8 | 2-10 | 0.01 | 1080x530x1780 |
PUC-60-YCA | 0.60 | 45 | 5.8 | 8 | 2-10 | 0.01 | 1080x530x1780 |
PUC-120-YCA | 1.20 | 132 | 11.6 | 8 | 2-10 | 0.01 | 1500x800x1780 |
PUC-180-YCA | 1.80 | 198 | 17.1 | 8 | 2-10 | 0.01 | 1500x1060x1780 |
PUC-240-YCA | 2.40 | 264 | 22.9 | 8 | 2-10 | 0.01 | 1500x1060x1780 |
PUC-300-YCA | 3.00 | 330 | 28.4 | 8 | 2-10 | 0.01 | 1500x1060x1780 |
PUC-360-YCA | 3.60 | 396 | 34.0 | 8 | 2-10 | 0.01 | 1500x1060x1780 |
Rated Voltage: 380V/3PH/50Hz
Noise：<78dB

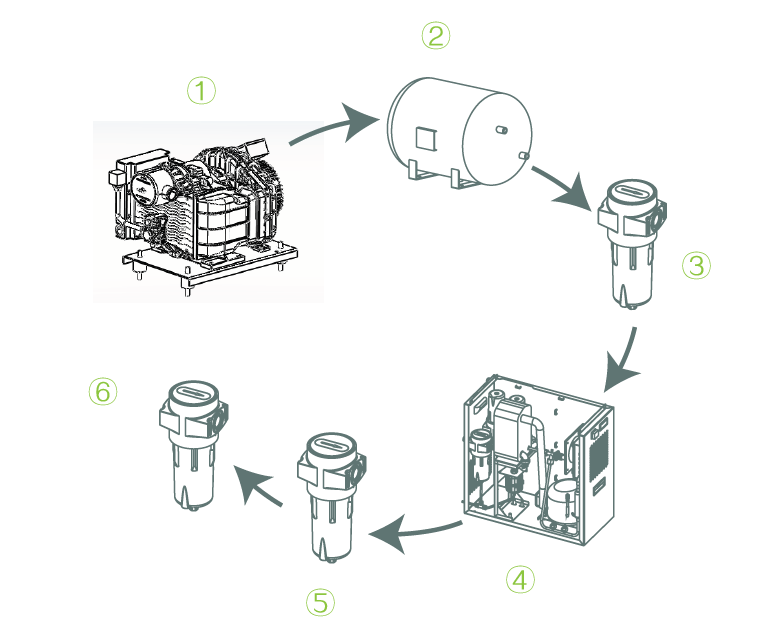

Technique info
Phase 1: Producing compressed air
Phase 2: Air tank saving compressed air
Phase 3:Removing liquid water and dust
Phase 4: Removing condensate water
Phase 5: Removing oil mist and retained particles
Phase 6: Removing odor
