Product Parameters

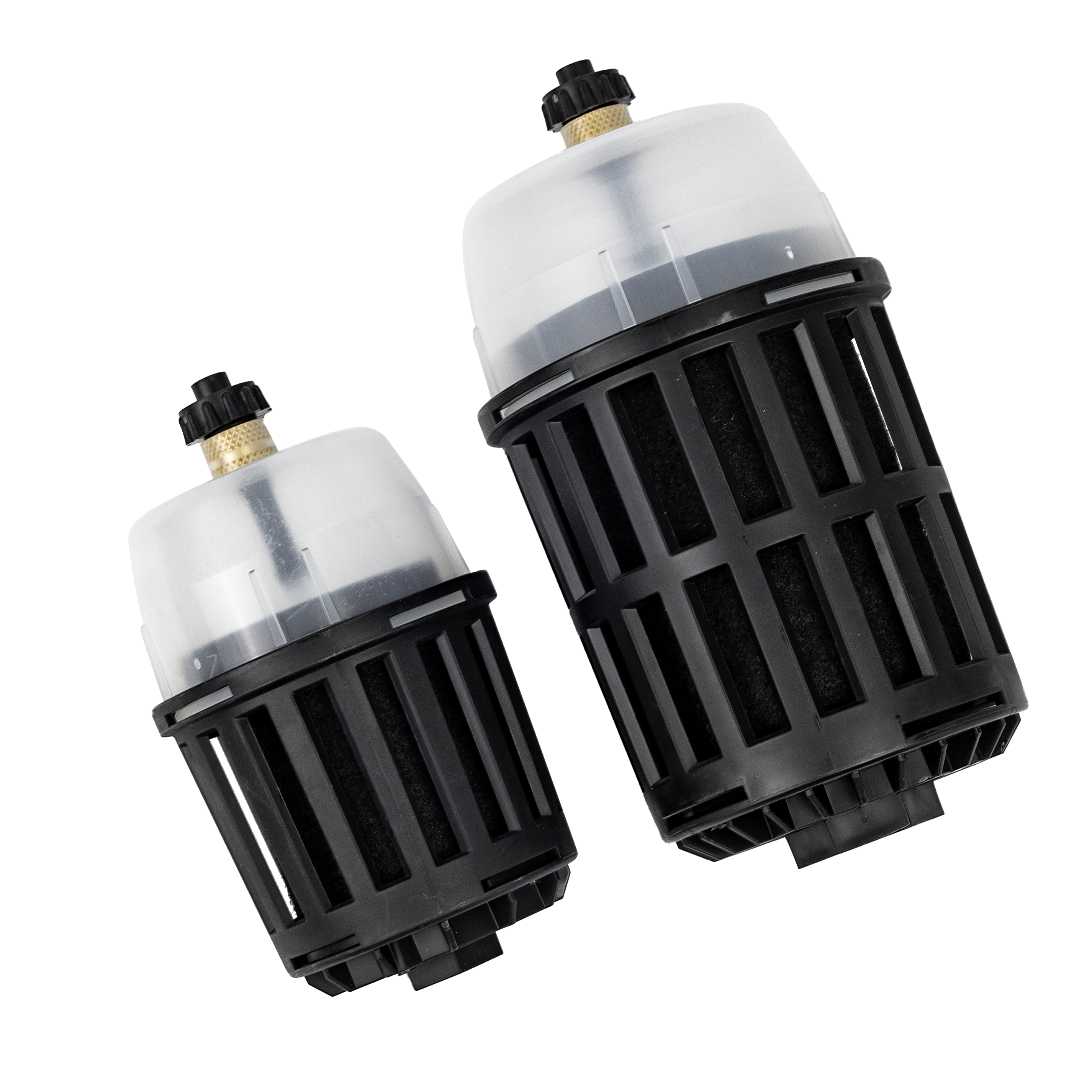

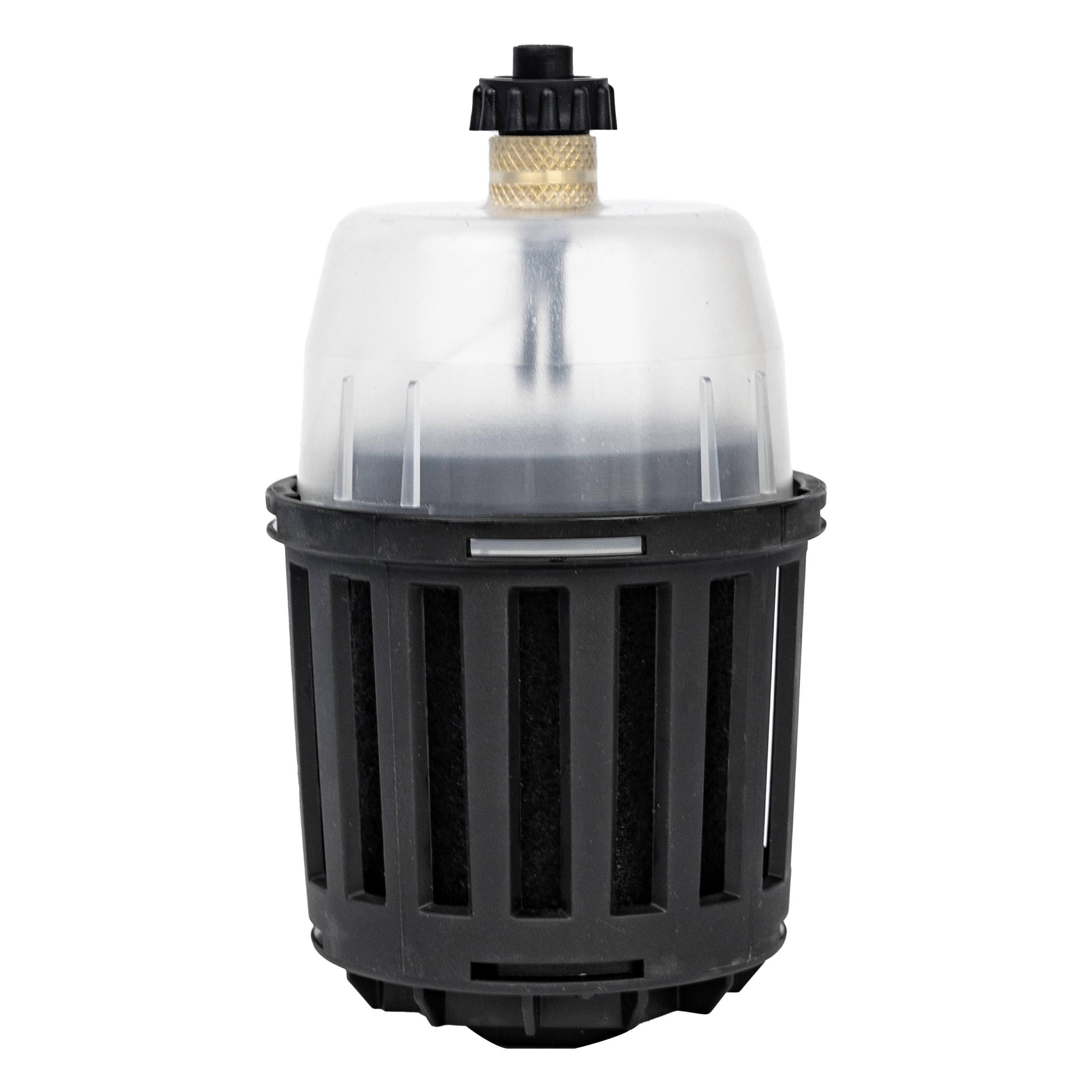

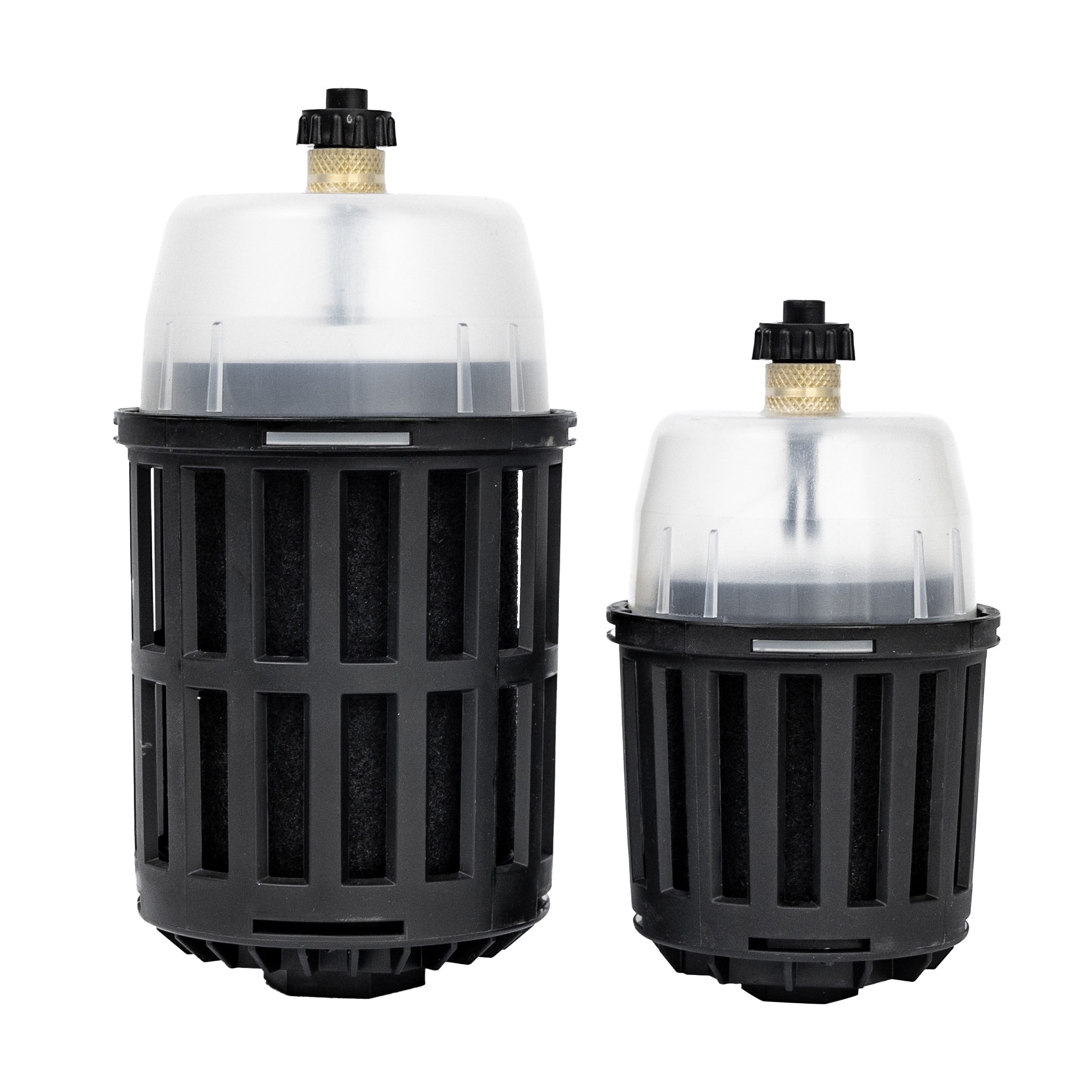

Made with our patented ARTm™ moulded filter media, the unrivalled Filter Silencer range from PSI Global reduces noise levels to below requirements specified by Health&Safety legislation, and removes oil mist from the exhaust air providing a safer working environment
Product selection
Model | Connection (BSP or NPT, Male or Female) | Flow Rate (Nmᶟ/hr) |
Replacement element |
030FS0025-10 | G 1/4 | 30 | 030RS005-007-A01 |
030FS0038-10 | G 3/8 | 35 | 030RS005-007-A01 |
030FS0050-10 | G 1/2 | 75 | 030RS006-011-A01 |
030FS0075-10 | G 3/4 | 100 | 030RS006-011-A01 |
030FS0100-10 | G 1 | 175 | 030RS007-018-A01 |
030FS0125-10 | G 1 1/4 | 200 | 030RS007-018-A02 |
030FS0150-10 | G 1 1/2 | 200 | 030RS007-019-A01 |
030FS0200-10 | G 2 | 200 | 030RS007-019-A02 |
Technique info
Operating Conditions
· Working pressure range 0-16 bar
· Working temperature -20℃-120℃
· Range Remaining Oil 0.0004-3.0mg/m³
· Noise reduction can be as low as 69dBa dependent on application
· Element replacement required at 0.3 bar pressure drop
