Product Parameters

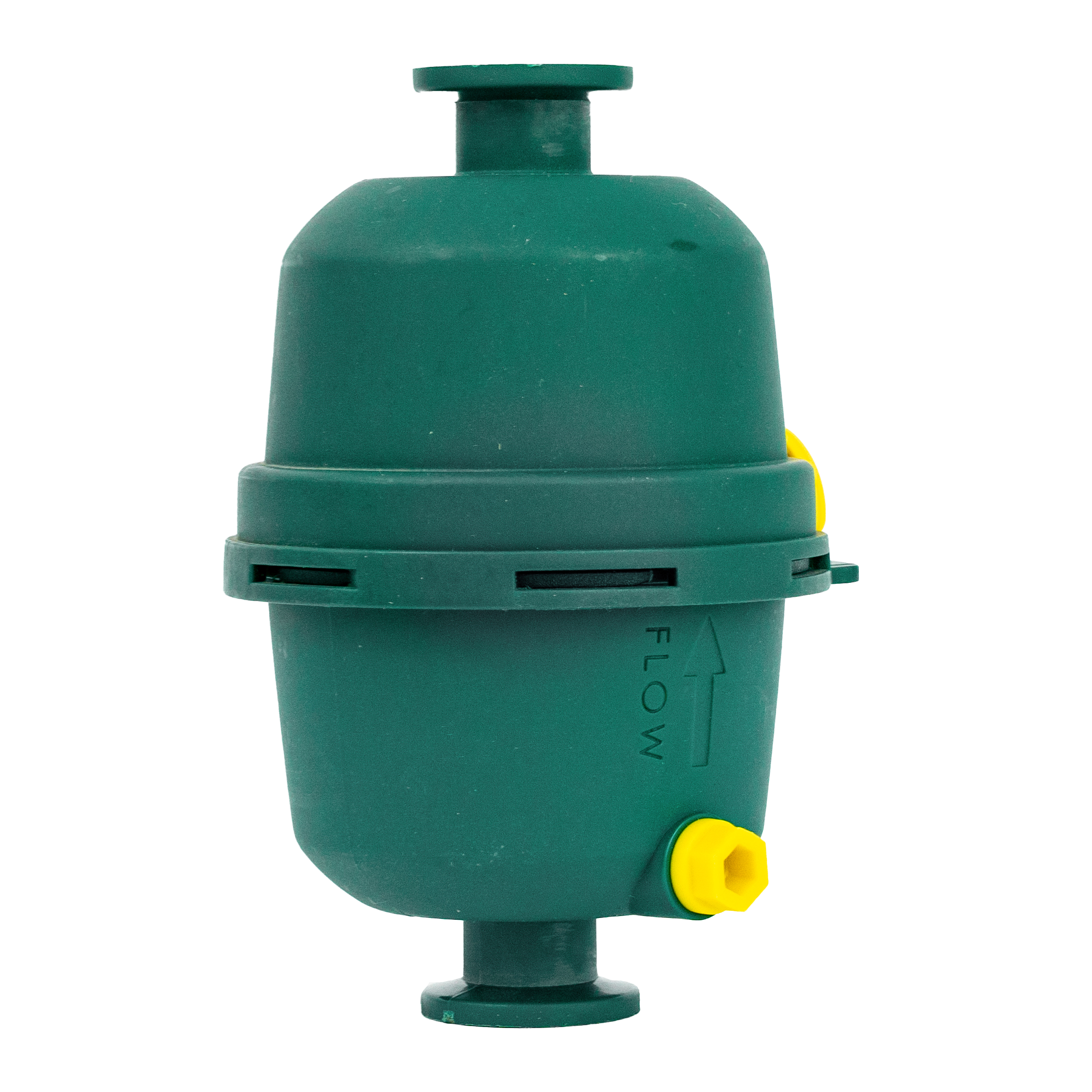

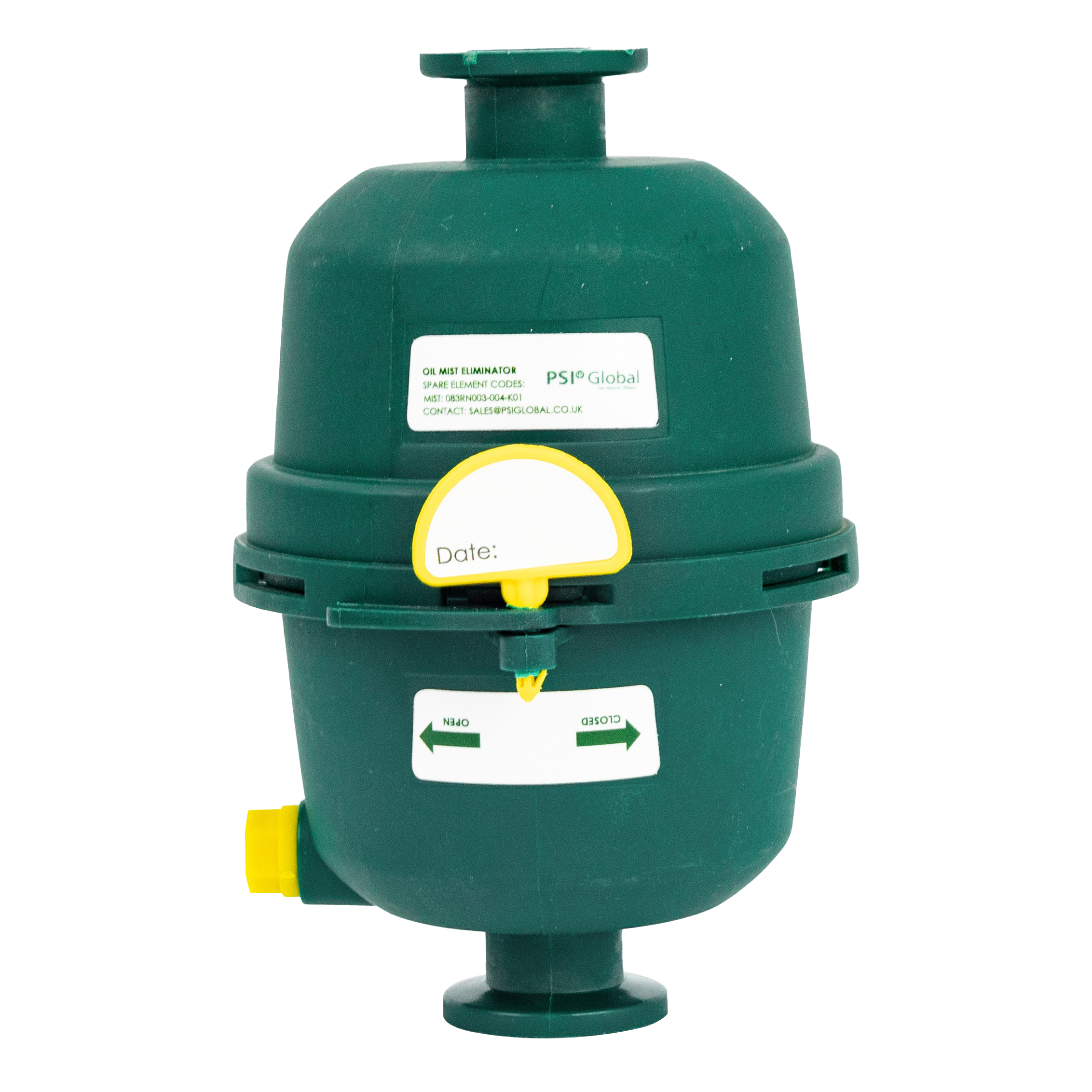

Oil Mist Eliminators(OME) are used to separate and trap oil mist and odours
Discharged with the exhaust from oil sealed rotary vacuum pimps as required by COSHH and Health and Safety regulations.
When vacuum pumps are started they usually emit a considerable quantity of oil vapour into the air. The oil mist contains oil and also contaminants which are in the pump. Oil mist accumulated on any surface within close proximity to the pump creating potential environmental and health hazards.
Benefits
· Eliminates oil fumes
· Prevents loss of pump oil
· Returns used oil to pump if oil return kit added
· Standard NW outlet and inlet flange fitting
· Long lasting patented PSI Global separator
· Optional pressure relief valve
· Optional activated carbon filter element
Product selection

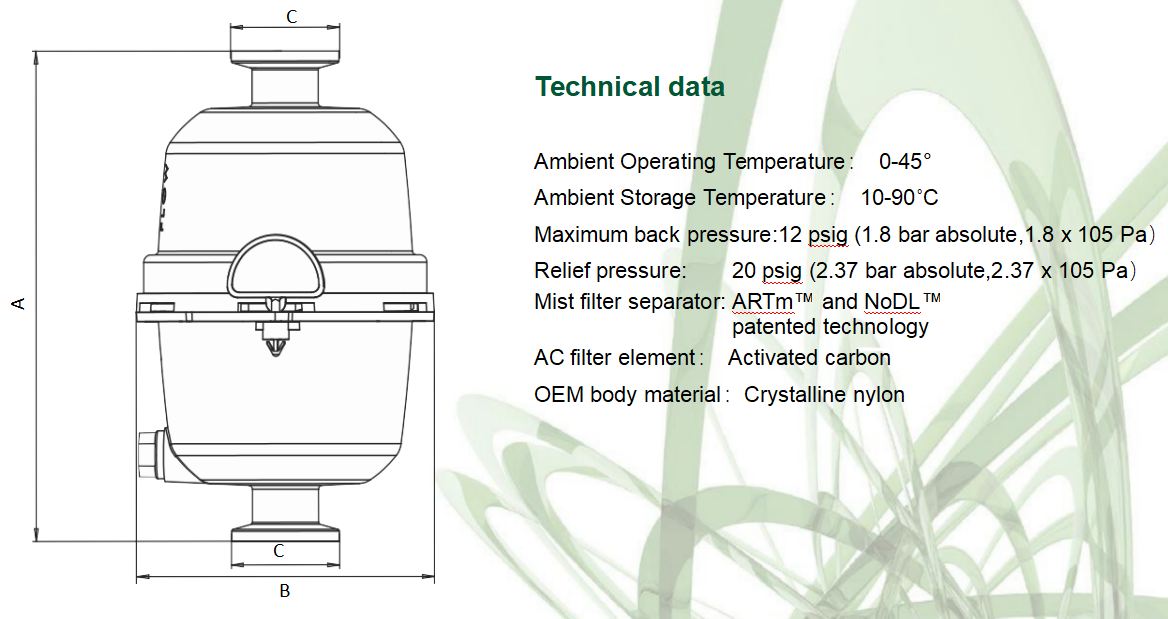

Dimensions | Oil Mist Eliminators | ||
OME01-010 Type | OME01-016 Type | OME02-025 Type | |
A | 128 | 128 | 171 |
B | 82 | 82 | 98 |
C | NW10 | NW16 | NW25 |
Rated Flow | 3m³h-1 | 3m³h-1 | 12m³h-1 |
W/ Relief valve&carbon filter element | OME01-010 PRV PC | OME01-016 PRV PC | OME02-025 PRV PC |
W/ Relief valve | OME01-010 PRV | OME01-016 PRV | OME02-025 PRV |
Technique info
The OME incorporates a PSI Global separator, using patented ARTm™ and NoDL™ technologies,that allows the pump to exhaust whilst trapping oil droplets which then condense and can be returned to the pump.
An optional pressure relief valve bypasses the filter in the event of a blockage. We also offer an activated carbon AC filter element which will neutralize the smell of oil mist.
