Product Parameters
AB Precision Filter uses PTFE pleated filter cartridges inside. It features an extensive range of pleated filter elements
capable of removing solid particles as small as 0.01 micron.
Product selection
| Key Factor | Detail |
| Port Size | Rc 1/4" |
| Filtration | 0.01 Micron |
| Max. Operating Temp | 50 ℃ |
| Max. Operating Pressure | 7 Bar |
| Fluid | Air or Inert Gas |
| Part | Material |
| Configuration | PP |
| Filter Element | PTFE |
Technique info

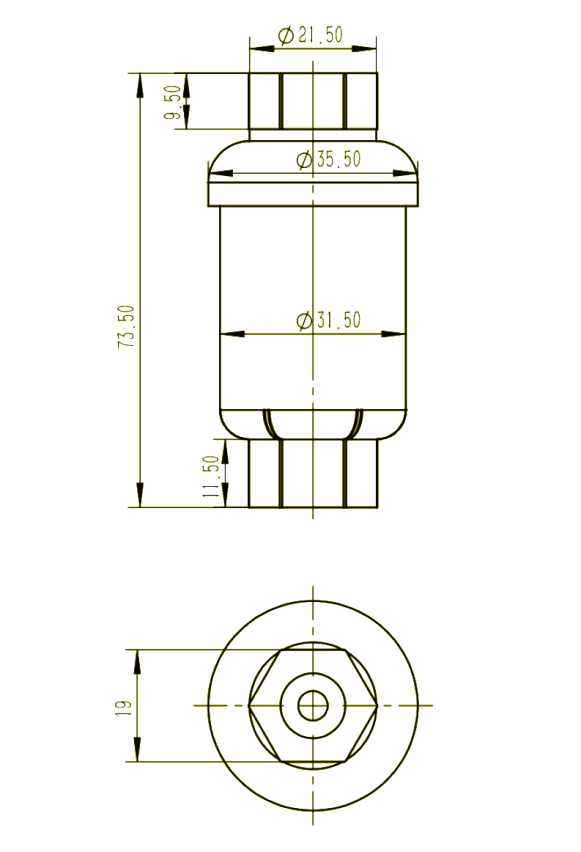

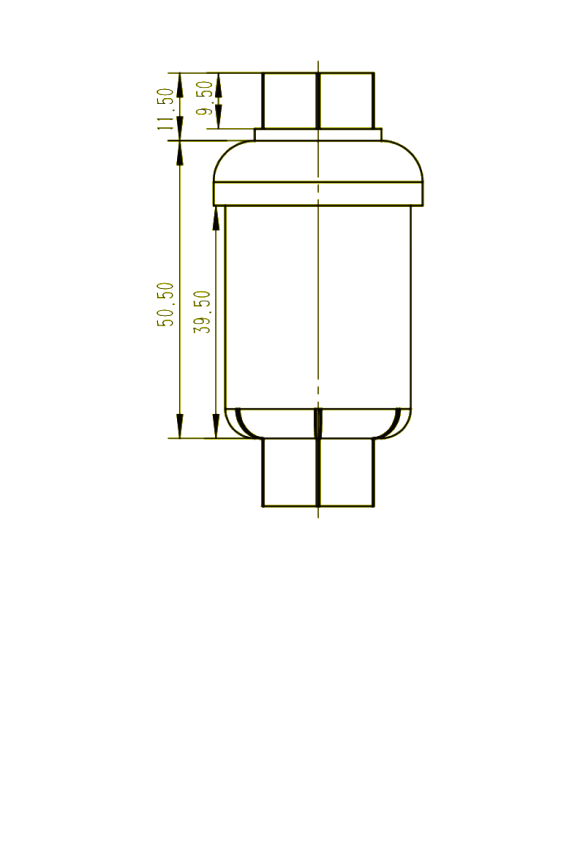

| Front View：mm | Overview: mm |
 |  |
